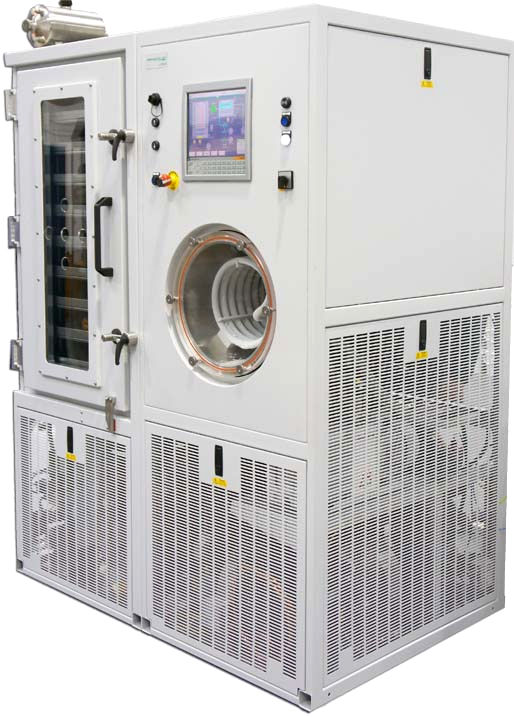

LyoDry Grande Freeze Dryer: Advanced Pharmaceutical Lyophilisation for Pilot and Production Scale Applications
- MechaTech Systems
- 2 days ago
- 3 min read
As pharmaceutical products become increasingly complex and temperature-sensitive, organisations require freeze-drying equipment that delivers precision, repeatability, and scalability. Whether developing innovative biologics, preserving vaccines, or manufacturing injectable pharmaceuticals, reliable lyophilisation processes are essential to maintaining product quality and stability. The LSG LyoDry Grande Freeze Dryer from MechaTech Systems has been specifically developed to meet the demands of modern pharmaceutical freeze drying, offering a powerful combination of automation, capacity, and process control for both pilot-scale and production-scale applications.
Why Pharmaceutical Freeze Drying Matters
Freeze drying, also known as lyophilisation, is a critical process for extending product shelf life while preserving the integrity of moisture-sensitive formulations. Success depends on maintaining precise control over temperature, pressure, and drying profiles throughout the freezing, primary drying, and secondary drying stages.
The LSG LyoDry Grande freeze dryer has been engineered to provide this level of control, helping pharmaceutical manufacturers and research organisations achieve consistent, reproducible results across multiple production cycles.
Large-Capacity Freeze Dryer for Growing Production Requirements
One of the standout features of the LyoDry Grande freeze dryer is its generous drying capacity.
The system includes nine temperature-controlled shelves, each measuring 375 mm x 500 mm, providing a total shelf area of 1.69 m². This makes the unit ideally suited for organisations looking to bridge the gap between laboratory development and full-scale manufacturing.
Suitable for both bulk freeze drying and vial freeze drying (with optional stoppering), the LyoDry Grande enables users to increase throughput while maintaining process consistency and product quality.
Precise Shelf Temperature Control
Precise temperature management is crucial in pharmaceutical lyophilisation. The LyoDry Grande is available in two configurations:
LSG40: Shelf temperature range from -40°C to +60°C
LSG60: Shelf temperature range from -60°C to +60°C
Both systems provide temperature accuracy better than ±0.5°C, helping reduce process variability and improve reproducibility between batches.
This level of control makes the system particularly suitable for pharmaceutical products, biological materials, vaccines, and research applications where product integrity is paramount.
High-Performance Ice Condenser Technology
Efficient moisture capture is essential for successful lyophilisation. The LyoDry Grande incorporates a 30 kg capacity ice condenser, ensuring effective moisture removal during the drying cycle. Users can choose between:
A -55°C ice condenser in the LSG40 model
A -85°C ice condenser in the LSG60 model
Both options deliver accurate temperature control, supporting efficient sublimation and overall process performance.
Automated Freeze Drying for Greater Efficiency
The LyoDry Grande is a fully automated freeze dryer featuring an intuitive touchscreen control system. A central processor manages every stage of the lyophilisation process, including:
Freezing
Primary drying
Secondary drying
End-point determination
Backfill sequences
Optional stoppering operations
By automating complex pressure and temperature profiles, the system minimises operator intervention and helps ensure consistent, repeatable freeze-drying cycles.
Data Logging and Compliance Support
For pharmaceutical manufacturers operating in regulated environments, data integrity and traceability are essential. The LyoDry Grande includes:
Data and event logging
Audit trail functionality
Password-protected user accounts
Real-time process monitoring
Storage of up to 200 process profiles
These features support process validation, quality management, and operational consistency across multiple production runs.
Optional Stoppering for Pharmaceutical Vials
For applications requiring vial processing, the LyoDry Grande can be supplied with an optional stoppering system. The hydraulically operated movable shelves allow stoppering within the chamber, reducing contamination risks and improving process efficiency.
UK Designed, Manufactured and Supported
Unlike many imported systems, the LyoDry Grande is designed, manufactured and supported in the UK. Each unit is fully assembled and factory acceptance tested before delivery, with installation, commissioning, site acceptance testing, operator training, and IQ/OQ documentation available where required.
This commitment to local support provides customers with confidence, responsive service, and long-term operational reliability.
Why Choose the LyoDry Grande Freeze Dryer?
The LSG LyoDry Grande freeze dryer combines the features pharmaceutical manufacturers need most:
Large 1.69 m² shelf area across nine shelves
Shelf temperatures from -40°C or -60°C up to +60°C
30 kg ice condenser capacity
Fully automated lyophilisation control
End-point determination capability
Data logging and audit trail functionality
Optional vial stoppering system
UK design, manufacture, installation and maintenance
Speak to the Freeze Drying Experts
Whether you are expanding from laboratory research into pilot production or looking to enhance your existing pharmaceutical manufacturing capabilities, the LyoDry Grande Freeze Dryer offers the performance, reliability, and scalability needed for modern lyophilisation processes.
Request a Quotation and/or Further information
Contact MechaTech Systems today to discuss your application, or obtain a tailored quotation. Our team can help you identify the right freeze-drying solution for your process requirements and provide ongoing support from installation through to operation.
